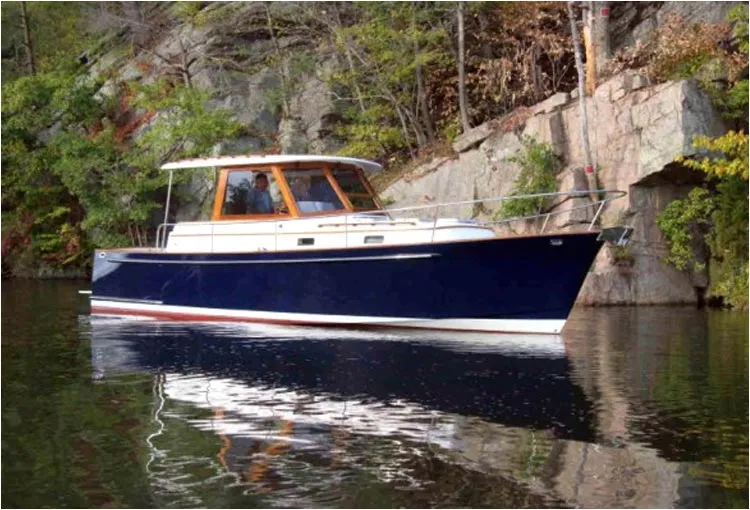

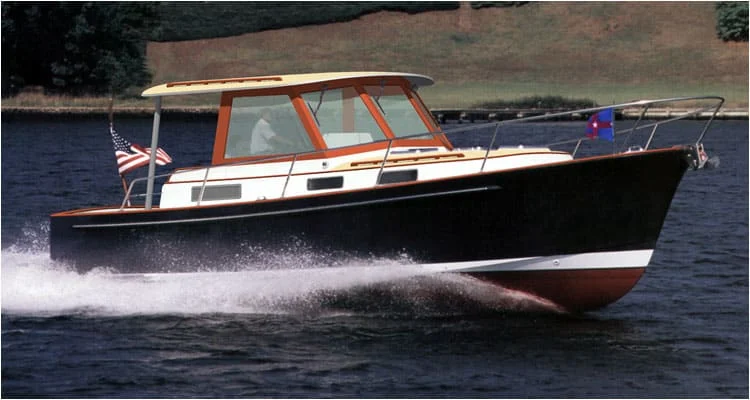

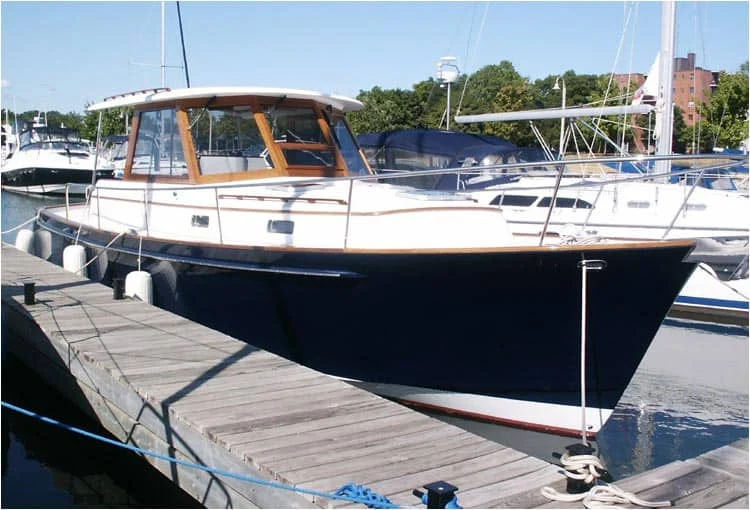

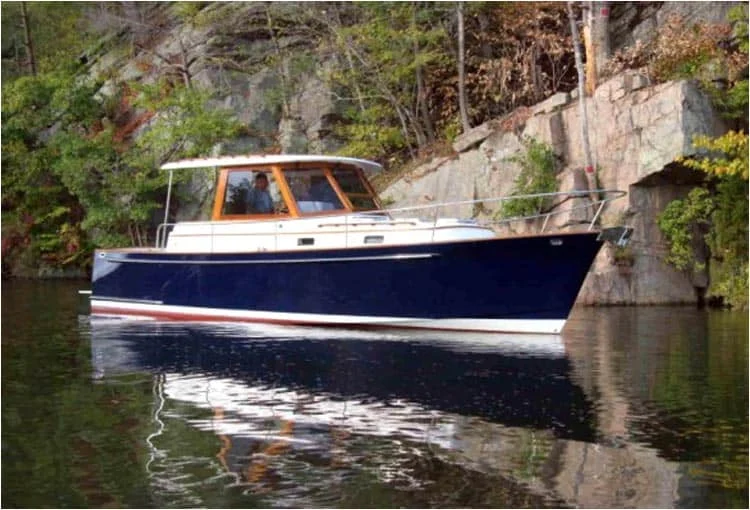

BRUCKMANN 34e Express Cruiser

STRUCTURE

• Fiberglass roving & unidirectional reinforcements over foam floors with limber holes
• Four full-length longitudinal floors forming the engine beds
• Transverse frames bonded to hull & longitudinals

HULL CONSTRUCTION

• Modified Epoxy resin throughout
• Single piece vacuum-bagged Core-Cell cored fiberglass molding
• Extra reinforcing as required
• Core phased out in way of all thruhulls, struts, shaft log, rudder ports & center line

DECK CONSTRUCTION

• Single piece Core-Cell cored fiberglass molding with non-skid pattern on all working surfaces
• Core phased out in way of all deck fittings
• Non-skid surfaces finished in Moon Dust Awlgrip
• Overlapping hull/deck joint bonded and fastened every 4”

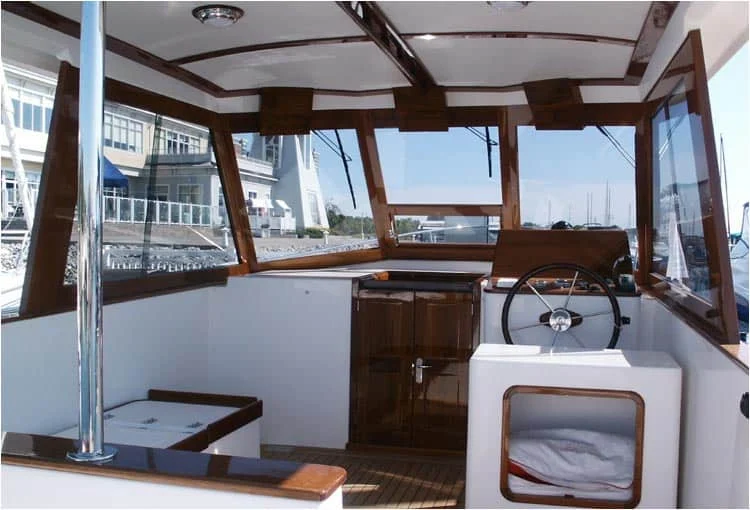

• Varnished teak windshield
• Teak decking on helmdeck

MECHANICAL

• Yanmar 370 H.P. diesel engine with flexible engine mounts
• Yanmar C-type engine instrument panel with alarms
• Dual density engine sound insulation
• Isolated bilge area under engine
• Raw water cooled exhaust with muffler
• 2” Aqua Met propeller shaft with zinc anode
• 4 blade bronze propeller
• Dripless shaft seal
• Bronze stern bearing
• Bronze rudder
• Bow thruster
• Dual engine room ventilation
• 2 – 125 US gallon vented fuel tanks with level indicator at helm
• Dual Racor fuel filters
• Raw water intake with strainer

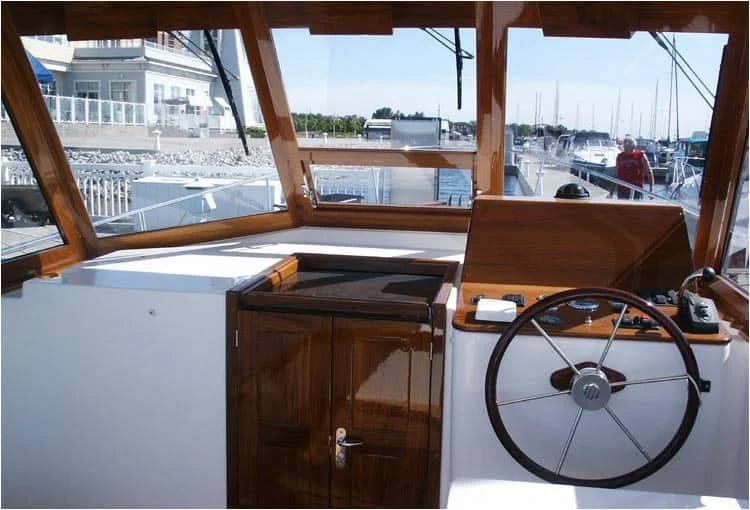

• Hydraulic steering
• Single lever throttle & gear shift control
• Bennett trim tabs

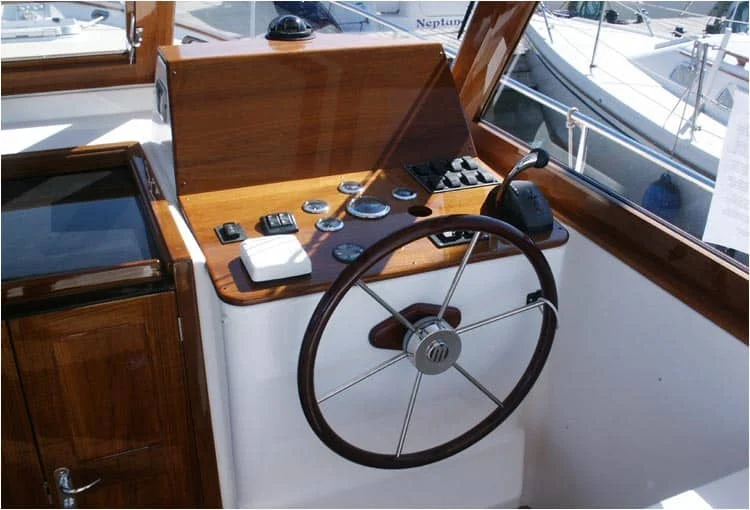

• Mahogany/Stainless steel steering wheel

PLUMBING

• Pressure water with hot & cold faucets in head/shower and galley
• Water heater, 6 gallon, 110V & engine heat exchanger
• 60 US gallon water tank with level indicator at helm

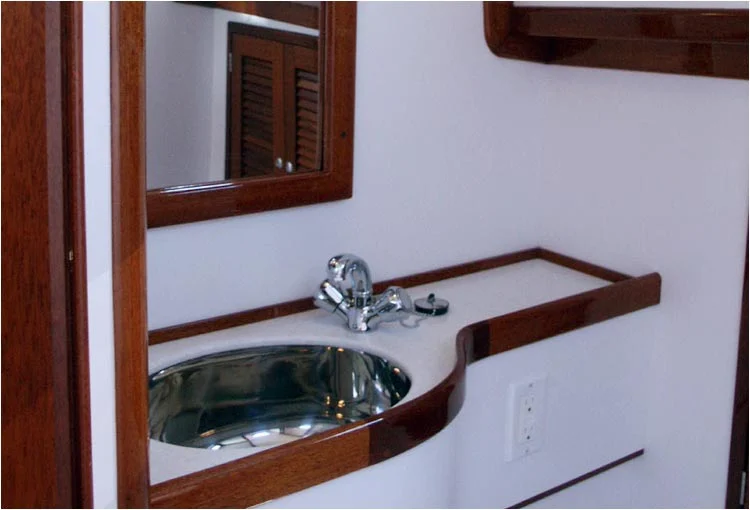

• Polished stainless steel sinks in galley & head
• Single lever chromed brass faucets
• Rigid colour coded PVC plumbing
• Marine manual toilet with 35 US gallon holding tank
• Holding tank overboard discharge with 12 volt macerator
• All sea cocks Marelon
• 2 – 1000 gallon per hour bilge pumps with float switches
• Integrated manual bilge pump

PROPANE

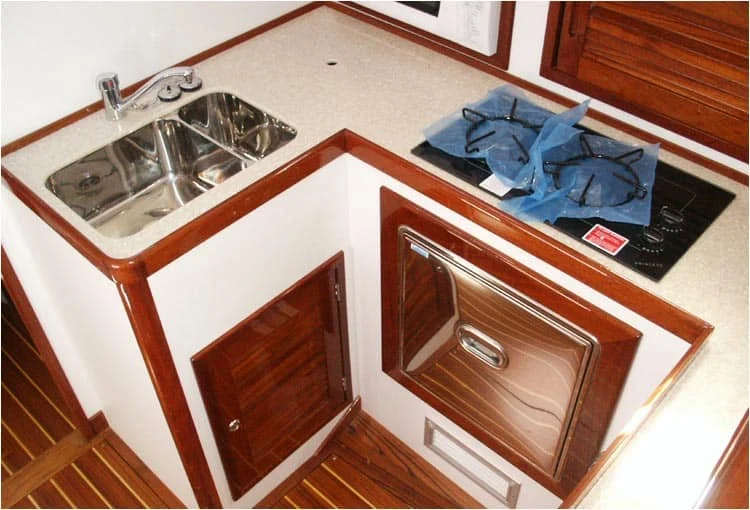

• Two-burner propane stove
• Remote solenoid gas shutoff
• 10 lb. propane tank & regulator
• All hoses & connectors meet Coast Guard or ABYC requirements

ELECTRICAL

• All wiring sized & colour coded to ABYC specs.
• 12V DC custom distribution panel with meters
• 110V AC custom power distribution panels with meter & polarity indicator
• 110V 30amp. shore power with 50’ cord
• 110V outlets in galley, head, dinette & engine room with ground fault protection
• One engine starting battery
• Two house batteries
• Three explosion proof master battery selection switches
• 1500w inverter/charger
• 12V refrigerator
• 4 chrome overhead lights in galley, dinette, head & V berth
• 2 chrome swivel reading lights in fwd. cabin
• Engine room lighting
• 3 windshield wipers with independent on/off switches at helm
• Running lights & anchor light
• 2 cockpit courtesy lights
• Electric horn
• Fire extinguishers in cabin & in cockpit
• Light at Danforth compass

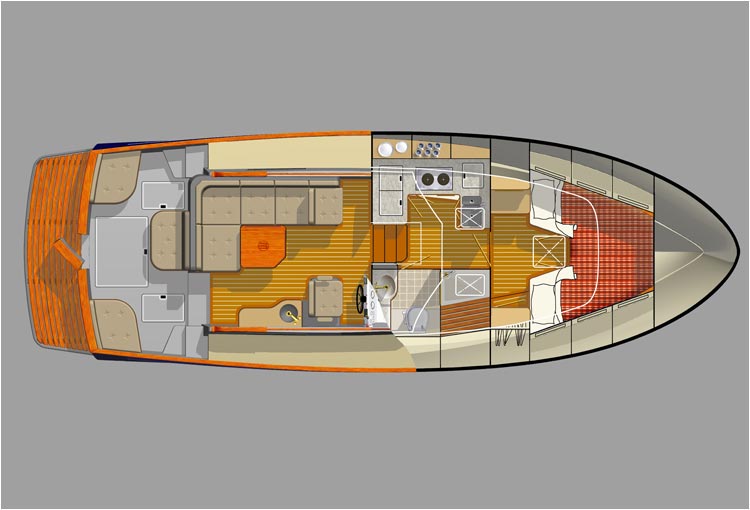

INTERIOR

• Main bulkheads Formica covered marine plywood fiberglassed to hull & deck
• All other bulkheads & faces marine grade plywood fiberglassed to hull & deck
• Gloss varnished interior mahogany trim
• Cabin & locker doors solid mahogany framed
• Varnished teak & holly cabin sole
• Removable overhead panels in satin white
• All exposed interior fiberglass in locker interiors covered with mahogany, cedar or gelcoat
• Corian countertops in galley & head
• All latches, hinges, catches & pulls are chromed bronze or brass
• Mirror in head
• Towel rack and toothbrush holder
• 5” foam upholstered cushions in main cabin & 6” foam in V berth

DECK

• All deck hardware & fittings 316 stainless steel
• SS bow fitting with anchor roller
• 6 stainless steel 10” mooring cleats
• 4 custom chromed inline cap rail chocks
• 1.” stainless steel bow rail extending aft to cockpit
• Integral rubrails with ss half molding
• Solid teak cap rail extending aft to cockpit
• Teak cabin nosing
• 2 Teak handrails on cabin top

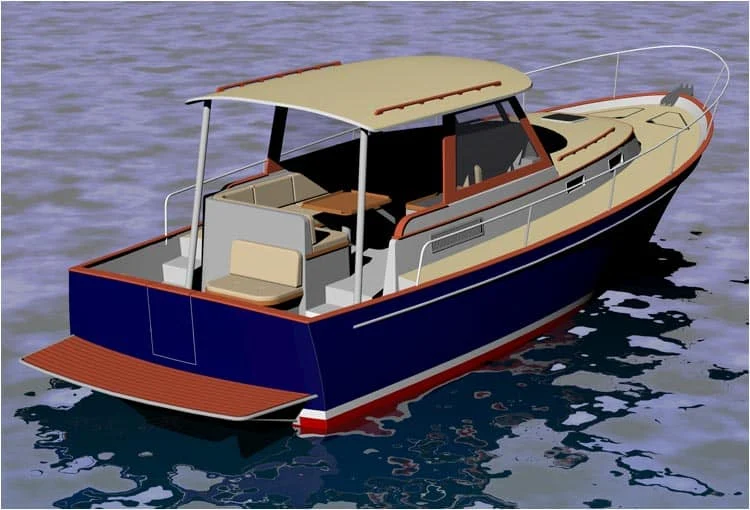

• Fiberglass hardtop with ss supports
• All exterior teak bright varnish
• 2 solid teak handrails on hardtop
• 4 stainless steel opening ports
• White powder coated aluminium windshield with 3 opening vents
• 5 Lewmar aluminium anodized hatches

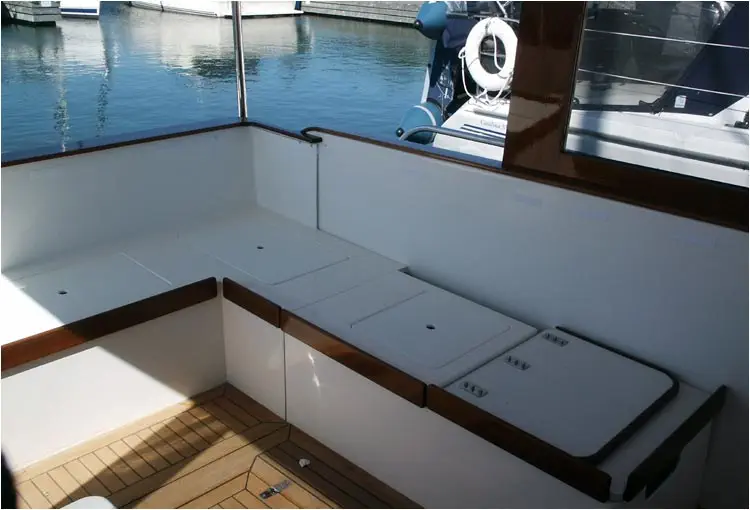

• Molded fibreglass settee
• Hi-lo co-pilot seat
• Hinged engine & storage access
• Hatches in cockpit sole
• Transom door
• Molded swim platform
• 3” foam upholstered cockpit cushions
